Manufacturer - Pierre Michaux and Louis-Guillaume Perreaux
Production - 1867–1871
Assembly - Paris, France
Class - Steam motorcycle
Engine - Single cylinder steam, 62 kg (137 lb)
Bore / stroke - 22 mm × 80 mm (0.87 in × 3.15 in)
Top speed - 9 mph (14 km/h) - 19 mph (31 km/h)
Power - 1–2 hp (0.75–1.49 kW)
Transmission - Twin leather belts
Frame type - Diamond section, iron down tube
Suspension - Rigid, leaf sprung saddle
Brakes - None
Tires - Iron covered wood spoked rims
Weight - 87–88 kg (192–194 lb) (dry)
The Michaux-Perreaux Steam Velocipede was a steam powered velocipede made in France sometime from 1867 to 1871, when a small Louis-Guillaume Perreaux commercial steam engine was attached to a Pierre Michaux manufactured iron framed pedal bicycle.
The Michaux-Perreaux Steam Velocipede is one of three motorcycles claimed to be the first motorcycle, one of which is the Roper Steam Velocipede of 1867 or 1868 pictured above.
The other machine being the Daimler Reitwagen of 1885 (pictured above), with its wooden frame and internal combustion engine.
Perreaux continued development of his Steam Cycle, and exhibited a tricycle version by 1884. The only Michaux-Perreaux steam velocipede made, on loan from the Musée de l'Île-de-France, Sceaux, was the first machine viewers saw upon entering the Solomon R. Guggenheim Museum rotunda in The Art of the Motorcycle exhibition in New York in 1998.
First motorcycle?
Motoring author L. J. K. Setright commented that, "the simplest way to define a motorcycle is as a bicycle propelled by a heat engine; and if we accept this we must go on to admit that its prototype is unidentifiable, shrouded in the mists of industrial antiquity." Both the Michaux-Perreaux and Roper machines have been assigned years of origin of 1867, 1868, and 1869 by different authorities, and which combination of these three years is given to the two steam motorcycles determines whether it was a tie, or whether one can be called the first.
Both steam cycles are rejected as the first motorcycle by other experts, such as Cycle World's Technical Editor Kevin Cameron, who either argue that a true motorcycle must use a gasoline internal combustion engine,[11] or that the first motorcycle must use the same technology as the successful motorcycles that later went into mass production, and not a 'dead end'. They therefore give credit to Wilhelm Maybach and Gottlieb Daimler's 1885 Daimler Reitwagen.
After the period of experimental steam and internal combustion motorcycles, the uncertainty dissolves on the question of the first production motorcycle. The 1,489 cc (90.9 cu in) liquid cooled four-stroke Hildebrand & Wolfmüller of 1894 was the first motorcycle produced in quantity and sold commercially.
Year of origin

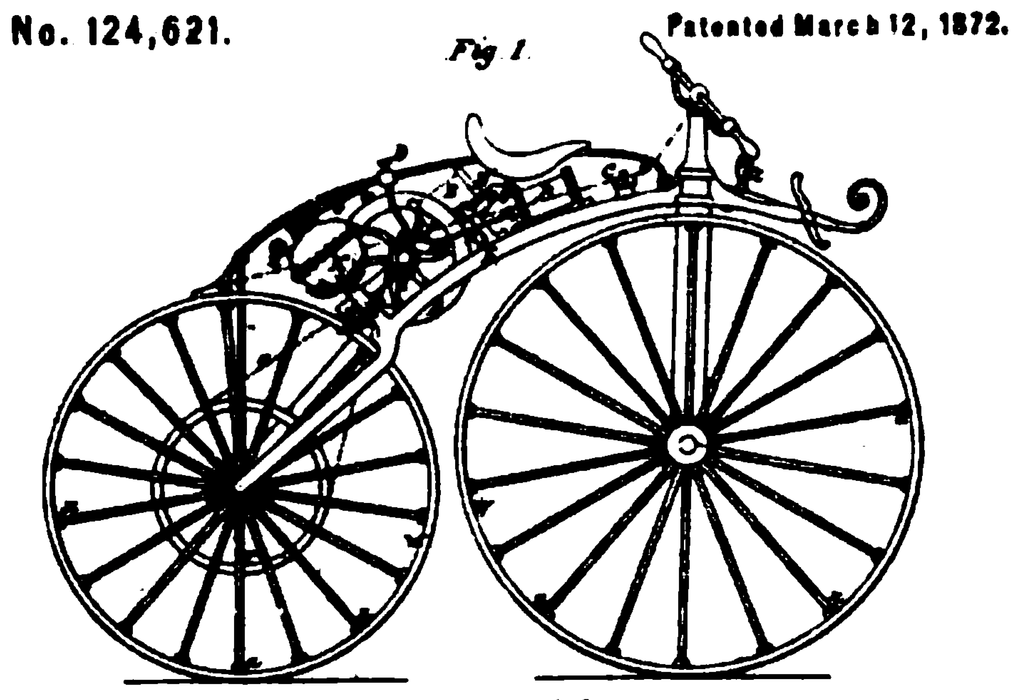

Drawing from 1872 patent addition
The earliest year suggested for the Michaux-Perreaux steam velocipede is 1867, which could be either the same year, or earlier than the Roper velocipede, which some authorities also date as early as 1867, while others such as motorcycling historians Charles M. Falco and David Burgess-Wise, and Motorcycle Consumer News design columnist Glynn Kerr date the Roper later, to 1868, and the AMA Hall of Fame member and author Mick Walker have it as 1869.
Walker also dates the Michaux-Perraux at 1869, declaring a tie. Louis-Guillaume Perreaux patented his steam velocipede on December 26, 1869, while Roper did not seek patents on any of his steam vehicles, and Daimler took out a patent for his Reitwagen on 29 August 1885. Classic Bike editor Hugo Wilson says because the Perreaux-Michaux has patents to verify its date, it has a stronger claim on being first than the Roper, even if they both probably appeared in about the same year.
Definition of first motorcycle
The Oxford English Dictionary and others include having an internal combustion engine as a criterion for a motorcycle. This definition of motorcycle worked for nearly the entire 20th century until electric and diesel motorcycles grew in prominence and were accepted as true motorcycles without question.
A different tack in favor of the internal combustion Reitwagen is that it was the prototype for virtually all successful designs that followed, in so far as the powerplant is concerned. Cameron said, "History follows things that succeed, not things that fail."
Design columnist Glynn Kerr, ignoring the Michaux-Perraux altogether and championing the Roper, feels it would be more accurate to call the Daimler Reitwagen, "the predecessor of all gasoline-driven vehicles on land, sea, or air", but not a true motorcycle because it used two outrigger wheels to remain upright and could not lean.
Further, Kerr notes the design was not up to the standards Daimler and Maybach's engineering skill, because they had no interest at the time in motorcycles, but only wanted an expedient test bed for their engine, and immediately dropped the Reitwagen in favor of a four wheeled stagecoach, a hot air balloon and a boat for their ongoing research. David Burgess-Wise called the Daimler-Maybach test bed "a crude makeshift", saying that "as a bicycle, it was 20 years out of date."
Development
The Michaux velocipede had a straight downtube and a spoon brake. Pierre Michaux's son Ernest is credited by L. J. K. Setright and David Burgess-Wise as having first fitted the Perreaux patented engine to the velocipede, while Charles M. Falco says it was Louis-Guillaume Perreaux.
The Michaux-Perreaux machine was constructed using the first commercially successful pedal bicycle, a boneshaker which Michaux had been building over 400 of annually since 1863, and the single cylinder alcohol fueled Perreaux engine, which used twin flexible leather belt drives to the rear wheel. A steam pressure gauge was mounted in the rider's view above the front wheel, and steam to the cylinder was engaged and regulated with a hand control.
The base Michaux velocipede came with a spoon brake but the steam version had no brakes. The engine weighed 62 kg (137 lb), and the total weight of the steam velocipede was 87–88 kg (192–194 lb). A 14 June 1871 addition to Perreaux's patent included the removal of the cranks and pedals from the front wheel, and using an arched instead of straight downtube to allow space for the engine. Although the steam velocipede was functional, it did not have any commercial successors.
Drawing of tricycle version, circa 1884
